FIXE

Versatile compact pulley

Versatile and compact, the FIXE pulley allows quick installation onto the rope.

Category: Tags: ,

Description

Description

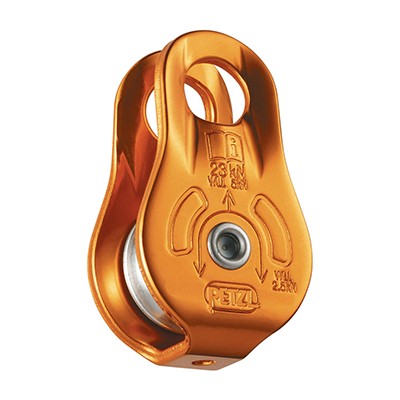

The FIXE is a compact and versatile pulley that installs quickly and easily onto the rope. The fixed aluminum side plates enable rapid installation and coupling with a rope clamp while the 21mm-diameter aluminum sheave is mounted on self-lubricating bushings for added efficiency. The result is an ideal combination between weight and strength, making it compatible with most work done at height.

Designed for hauling systems and deviations, the FIXE should be used with an OK or WILLIAM type carabiner. Minimum rope diameter is 7mm while the maximum is 13mm. It is available in yellow or black and certified for CE EN 12278.

Specifications

  • Rope compatibility: 7 to 13 mm
  • Sheave diameter: 21 mm
  • Ball bearings: no
  • Efficiency: 71 %
  • Maximum working load: 2,5 kN x 2 = 5 kN
  • Weight: 90 g
  • Certification(s): CE EN 12278
